Multipart Form-data response parsing in Java and JavaScript

September 16, 2024 · 11 min read

Software engineer @ Sonar

In this article, I will show you how to implement an HTTP server that replies with form-data and how to parse it from the client. I will provide examples for the server in Node.js, using external libraries and native ones. For the client, I will show implementations in JS and Java.

All the presented code snippets can be found here.

I will illustrate cases where the parts are only text and a mix of text and binary data.

Form-data is the way browsers send the contents of the <form> element. It is also the way for the HTTP protocol to send key-value data in a POST request which supports values of different formats, such as text and binary.

Form-data with text

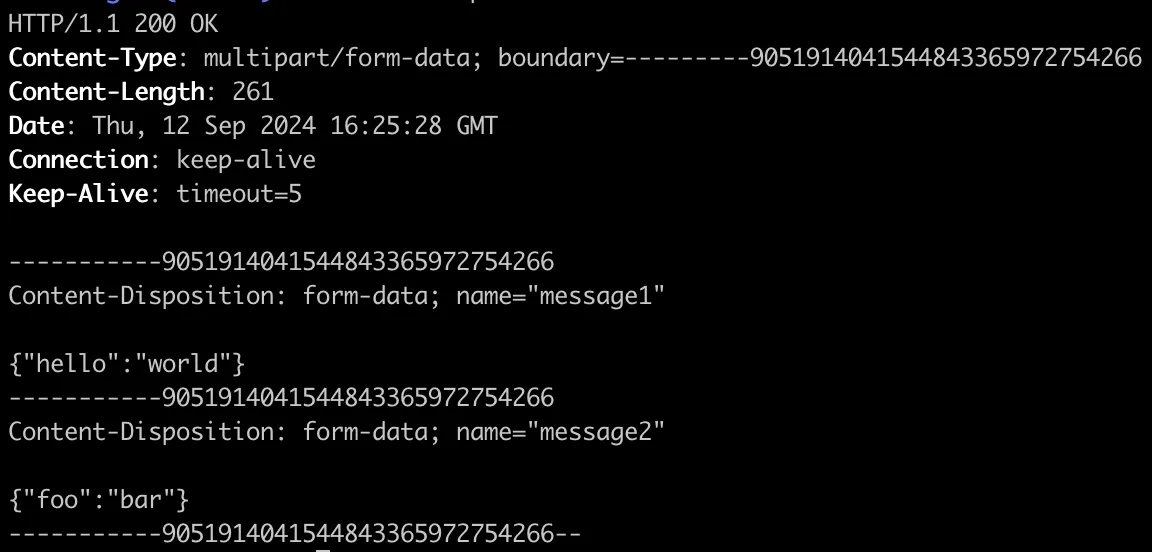

HTTP response of multipart/form-data with text parts

JS server — with libraries

We use the express and form-data libraries in this example for convenience.

We use JSON data for the text, but it can also be plain text. We append each part with its name, here message1 and message2 to the formData instance, set the required headers. Finally, we must pipe it into the response stream.

I had to use 127.0.0.1 instead of localhost for the host address on the JS server side, because the Java clients would not resolve it.

const http = require('http');
const app = require('express')();
const formData = require('form-data');
const PORT = '9876';
const HOST = '127.0.0.1';

const message1 = JSON.stringify({ hello: 'world' });
const message2 = JSON.stringify({ foo: 'bar' });

const requestHandler = ((_, response) => {
  const fd = new formData();
  fd.append('message1', message1);
  fd.append('message2', message2);
  // generates the "multipart/form-data; boundary=..." header
  response.set('Content-Type', fd.getHeaders()['content-type']);
  response.set('Content-Length', fd.getLengthSync());
  fd.pipe(response);
});

app.use(requestHandler);

const server = http.createServer(app);
server.listen(PORT, HOST, err => {
  if (err) {
    return console.log('something bad happened', err);
  }
  console.log(`server is listening on ${HOST}:${PORT}`);
});

JS server — without libraries

For a unit test in the Java component, I had to implement a mock server that was not using any libraries. It helped me have a better understanding of the form-data layout.

The body starts with the boundary string which is then used to split every part of the message. The boundary must have a length of up to 70 characters, and you can read more about it here.

Then, each part is organized as follows:

Starts with \r\n
its header, which contains the name of the part
2 times \r\n
its body
ends with \r\n

We must ensure that the body length in bytes is properly computed and not forget the Content-Type header.

const http = require('http');
const formData = require('form-data');
const PORT = '9876';
const HOST = '127.0.0.1';

const message1 = JSON.stringify({ hello: 'world' });
const message2 = JSON.stringify({ foo: 'bar' });

const requestHandler = (request, response) => {
  let data = '';
  request.on('data', chunk => (data += chunk));
  request.on('end', () => {
    // do something with the incoming data if needed
    const boundary = '---------9051914041544843365972754266';
    const contentTypeHeader = `multipart/form-data; boundary=${boundary}`;
    let body = '';
    body += `--${boundary}`;
    body += `\r\n`;
    body += `Content-Disposition: form-data; name="message1"`;
    body += `\r\n`;
    body += `\r\n`;
    body += `${message1}`;
    body += `\r\n`;
    body += `--${boundary}`;
    body += `\r\n`;
    body += `Content-Disposition: form-data; name="message2"`;
    body += `\r\n`;
    body += `\r\n`;
    body += `${message2}`;
    body += `\r\n`;
    body += `--${boundary}--`;
    body += `\r\n`;
    response.writeHead(200, {
      'Content-Type': contentTypeHeader,
      'Content-Length': Buffer.byteLength(body, 'utf-8'),
    });
    response.end(body);
  });
};

const server = http.createServer(requestHandler);

server.listen(PORT, HOST, err => {
  if (err) {
    return console.log('something bad happened', err);
  }
  console.log(`server is listening on ${HOST}:${PORT}`);
});

Java client

We start by extracting the boundary string from the Content-Type header, which we use to split the separate parts of the body with response.body().split(...). Most client libraries will generate one for you as you saw in the previous example.

Then we use the \r\n\r\n separator to split between each part’s header and body. As you can see in the library-less server implementation above, we must trim the \r\n form-data boilerplate. If we are handling JSON data, we could simplify this part using String.trim().

import java.net.URI;
import java.net.URISyntaxException;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.net.http.HttpResponse.BodyHandlers;
import java.time.Duration;

public class MyClient {

  public record MyApiResponse(String message1, String message2) {};

  public static MyApiResponse parseFormData(String contentTypeHeader, String responseBody) {
    String boundary = "--" + contentTypeHeader.split("boundary=")[1];
    String[] parts = responseBody.split(boundary);
    String message1 = null;
    String message2 = null;
    for (String part : parts) {
      // Split the part into headers and body
      int separatorIndex = part.indexOf("\r\n\r\n");
      if (separatorIndex == -1) {
        // Skip if there's no body
        continue;
      }
      // I remove the first 2 bytes, representing "\r\n" before the headers
      String headers = part.substring(2, separatorIndex);
      // I remove the first 4 bytes and last 2.
      // They are the "\r\n\r\n" before and "\r\n" after the payload
      String partBody = part.substring(separatorIndex + 4, part.length() - 2);

      if (headers.contains("message1")) {
        message1 = partBody;
      } else if (headers.contains("message2")) {
        message2 = partBody;
      }
    }
    if (message1 == null || message2 == null) {
      throw new IllegalStateException("Data missing from response");
    }
    return new MyApiResponse(message1, message2);
  }

  public static MyApiResponse sendRequest(String host, int port) throws Exception {
    HttpRequest request =
      HttpRequest
        .newBuilder()
        .uri(url(host, port, "hello"))
        .GET()
        .build();
    HttpClient client =
      HttpClient
        .newBuilder()
        .connectTimeout(Duration.ofSeconds(30))
        .build();
    HttpResponse<String> response =
      client
        .send(request, BodyHandlers.ofString());
    String contentTypeHeader = response.headers()
      .firstValue("Content-Type")
      .orElseThrow(() -> new IllegalStateException("No Content-Type header"));
    String responseBody = response.body();
    return parseFormData(contentTypeHeader, responseBody);
  }

  private static URI url(String host, int port, String endpoint) {
    try {
      return new URI("http", null, host, port, "/" + endpoint, null, null);
    } catch (URISyntaxException e) {
      throw new IllegalStateException("Invalid URI: " + e.getMessage(), e);
    }
  }

  public static void main(String[] args) throws Exception {
    MyApiResponse response = sendRequest("localhost", 9876);
    System.out.println(response); // MyApiResponse[message1={"hello":"world"}, message2={"foo":"bar"}]
  }
}

JS client

For the HTTP request, we use the fetch API available in modern browsers and Node.js since version 18.

async function request(host, port) {
  const res = await fetch(`http://${host}:${port}/hello`);
  const fd = await res.formData();
  const message1 = fd.get('message1');
  const message2 = fd.get('message2');
  return [message1, message2];
}

(async () => {
  const response = await request('localhost', 9876)
  console.log(response); // [ '{"hello":"world"}', '{"foo":"bar"}' ]
})();

Form-data with binary data

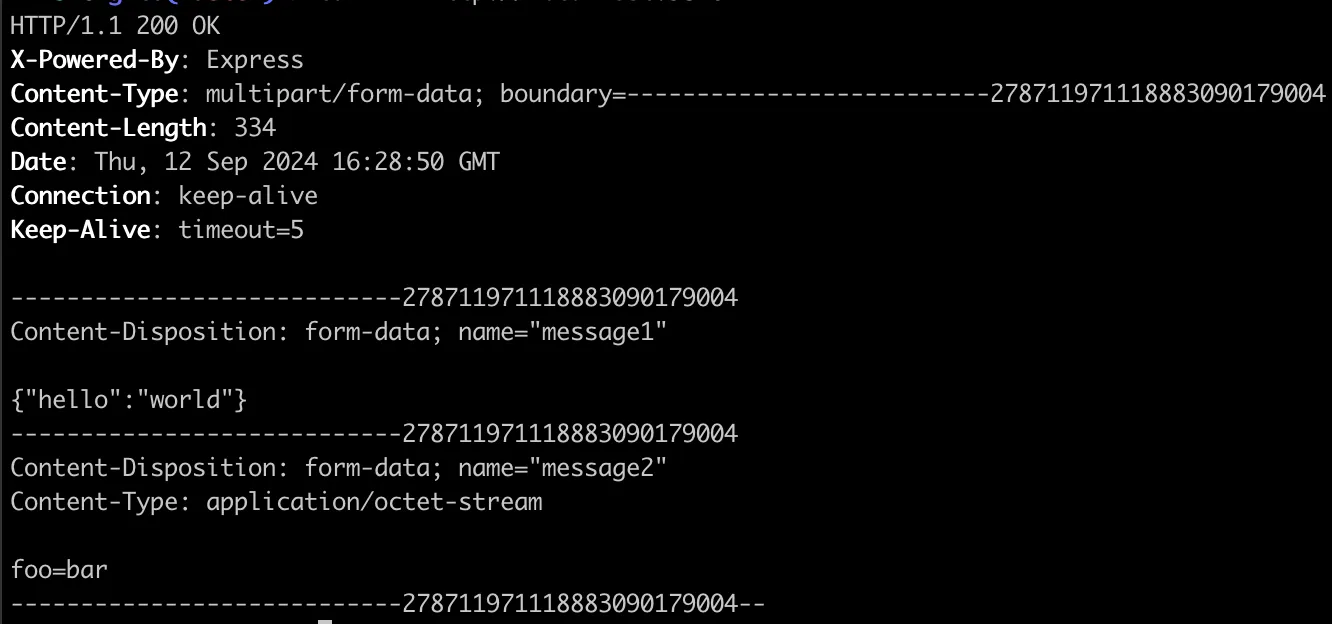

HTTP response of multipart/form-data with text and binary parts

We change the message2 part to be treated as a binary, while message1 stays the same.

JS server — with libraries

We use a simple string for message2, but it accepts a Buffer object such as the bytes from a file given by the result of fs.readFileSync().

const http = require('http');
const app = require('express')();
const formData = require('form-data');
// const fs = require('fs');

const PORT = '9876';
const HOST = '127.0.0.1';

const message1 = JSON.stringify({ hello: 'world' });
const message2 = Buffer.from('foo=bar');
// const message2 = fs.readFileSync('path/to/my/file');

const requestHandler = ((_, response) => {
  const fd = new formData();
  fd.append('message1', message1);
  fd.append('message2', message2);
  response.set('Content-Type', fd.getHeaders()['content-type']);
  response.set('Content-Length', fd.getLengthSync());
  fd.pipe(response);
});

app.use(requestHandler);

const server = http.createServer(app);
server.listen(PORT, HOST, err => {
  if (err) {
    return console.log('something bad happened', err);
  }
  console.log(`server is listening on ${HOST}:${PORT}`);
});

JS server — without libraries

When sending binary data, we need to convert the string parts and separators using Buffer.from() and join them using Buffer.concat().

For the binary part, we need to add a Content-Type header inside the body.

const http = require('http');
const formData = require('form-data');
// const fs = require('fs');

const PORT = '9876';
const HOST = '127.0.0.1';

const message1 = JSON.stringify({ hello: 'world' });
const message2 = Buffer.from('foo=bar');
// const message2 = fs.readFileSync('path/to/my/file');

const requestHandler = (request, response) => {
  let data = '';
  request.on('data', chunk => (data += chunk));
  request.on('end', () => {

    const boundary = '---------9051914041544843365972754266';
    const contentTypeHeader = `multipart/form-data; boundary=${boundary}`;
    let firstPart = '';
    firstPart += `--${boundary}`;
    firstPart += `\r\n`;
    firstPart += `Content-Disposition: form-data; name="message1"`;
    firstPart += `\r\n`;
    firstPart += `\r\n`;
    firstPart += `${message1}`;
    firstPart += `\r\n`;
    firstPart += `--${boundary}`;
    firstPart += `\r\n`;
    firstPart += `Content-Disposition: form-data; name="message2"`;
    firstPart += `\r\n`;
    firstPart += `Content-Type: application/octet-stream`;
    firstPart += `\r\n`;
    firstPart += `\r\n`;
    let lastPart = '';
    lastPart += `\r\n`;
    lastPart += `--${boundary}--`;
    lastPart += `\r\n`;
    const body = Buffer.concat([Buffer.from(firstPart), message2, Buffer.from(lastPart)]);
    const contentLength = body.length;
    response.writeHead(200, {
      'Content-Type': contentTypeHeader,
      'Content-Length': contentLength,
    });
    response.end(body);
  });
};

const server = http.createServer(requestHandler);

server.listen(PORT, HOST, err => {
  if (err) {
    return console.log('something bad happened', err);
  }
  console.log(`server is listening on ${HOST}:${PORT}`);
});

Java client

Now, the change is that the HTTP response body is a byte array, so we must manipulate bytes instead of Strings in our parsing function.

First, we translate the boundary in bytes using boundary.getBytes().

Then we use custom indexOf() and split() methods that operate on bytes to separate the Form-Data parts. We must also trim the headers and body of the different parts.

import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.net.http.HttpResponse.BodyHandlers;
import java.net.URI;
import java.net.URISyntaxException;
import java.nio.charset.StandardCharsets;
import java.time.Duration;
import java.util.Arrays;
import java.util.LinkedList;
import java.util.List;

public class MyClientData {

  public record MyApiResponse(String message1, byte[] message2) {};

  public static MyApiResponse parseFormData(String contentTypeHeader, byte[] responseBody) {
    String boundary = "--" + contentTypeHeader.split("boundary=")[1];
    byte[] boundaryBytes = boundary.getBytes(StandardCharsets.ISO_8859_1);
    List<byte[]> parts = split(responseBody, boundaryBytes);

    String message1 = null;
    byte[] message2 = null;

    for (byte[] part : parts) {
      int separatorIndex = indexOf(part, "\r\n\r\n".getBytes(StandardCharsets.ISO_8859_1));
      if (separatorIndex == -1) {
        // Skip if there's no body
        continue;
      }

      // I remove the first 2 bytes, representing "\r\n" before the headers
      byte[] headers = Arrays.copyOfRange(part, 2, separatorIndex);
      // I remove the first 4 bytes and last 2.
      // They are the "\r\n\r\n" before and "\r\n" after the payload
      byte[] body = Arrays.copyOfRange(part, separatorIndex + 4, part.length - 2);

      String headersStr = new String(headers, StandardCharsets.UTF_8);

      if (headersStr.contains("message1")) {
        message1 = new String(body, StandardCharsets.UTF_8);
      } else if (headersStr.contains("message2")) {
        message2 = body;
      }
    }
    if (message1 == null || message2 == null) {
      throw new IllegalStateException("Data missing from response");
    }
    return new MyApiResponse(message1, message2);
  }

  private static int indexOf(byte[] array, byte[] pattern) {
    for (int i = 0; i < array.length - pattern.length + 1; i++) {
      boolean found = true;
      for (int j = 0; j < pattern.length; j++) {
        if (array[i + j] != pattern[j]) {
          found = false;
          break;
        }
      }
      if (found) return i;
    }
    return -1;
  }

  private static List<byte[]> split(byte[] array, byte[] delimiter) {
    List<byte[]> byteArrays = new LinkedList<>();
    if (delimiter.length == 0) {
      return byteArrays;
    }
    int begin = 0;

    outer:
    for (int i = 0; i < array.length - delimiter.length + 1; i++) {
      for (int j = 0; j < delimiter.length; j++) {
        if (array[i + j] != delimiter[j]) {
          continue outer;
        }
      }
      byteArrays.add(Arrays.copyOfRange(array, begin, i));
      begin = i + delimiter.length;
    }
    byteArrays.add(Arrays.copyOfRange(array, begin, array.length));
    return byteArrays;
  }

  public static MyApiResponse sendRequest(String host, int port) throws Exception {
    HttpRequest request =
      HttpRequest
        .newBuilder(url(host, port, "hello"))
        .GET()
        .build();
    HttpClient client =
      HttpClient
        .newBuilder()
        .connectTimeout(Duration.ofSeconds(30))
        .build();
    HttpResponse<byte[]> response =
      client
        .send(request, BodyHandlers.ofByteArray());
    String contentTypeHeader = response.headers()
      .firstValue("Content-Type")
      .orElseThrow(() -> new IllegalStateException("No Content-Type header"));
    byte[] responseBody = response.body();
    return parseFormData(contentTypeHeader, responseBody);
  }

  private static URI url(String host, int port, String endpoint) {
    try {
      return new URI("http", null, host, port, "/" + endpoint, null, null);
    } catch (URISyntaxException e) {
      throw new IllegalStateException("Invalid URI: " + e.getMessage(), e);
    }
  }

  public static void main(String[] args) throws Exception {
    MyApiResponse response = sendRequest("localhost", 9876);
    System.out.println(response.message1() + " " + new String(response.message2(), StandardCharsets.UTF_8)); // {"hello":"world"} foo=bar
  }
}

JS client

For the JS client, we must call Blob.arrayBuffer() to obtain the adequate interface.

async function request(host, port) {
  const res = await fetch(`http://${host}:${port}/hello`);
  const fd = await res.formData();
  const message1 = fd.get('message1');
  const message2 = fd.get('message2');
  const buffer = Buffer.from(await message2.arrayBuffer());
  return [message1, buffer];
}

(async () => {
  const response = await request('localhost', 9876)
  console.log(response[0], response[1].toString()); // {"hello":"world"} foo=bar
})();

Conclusion

I wrote this article because I didn’t find much sources that explained how to parse Form-Data in an HTTP response. Most of what I found covers either the building of such a request or how to parse it on the server side.

I hope this helps other people implementing these parts, as I have strived to provide working code samples alongside my explanations.

Working on this task and writing this article has provided me a better understand of the Form-Data layout and the various HTTP library APIs around it.

Form-data with text​

JS server — with libraries​

JS server — without libraries​

Java client​

JS client​

Form-data with binary data​

JS server — with libraries​

JS server — without libraries​

Java client​

JS client​

Conclusion​

Form-data with text

JS server — with libraries

JS server — without libraries

Java client

JS client

Form-data with binary data

JS server — with libraries

JS server — without libraries

Java client

JS client

Conclusion
